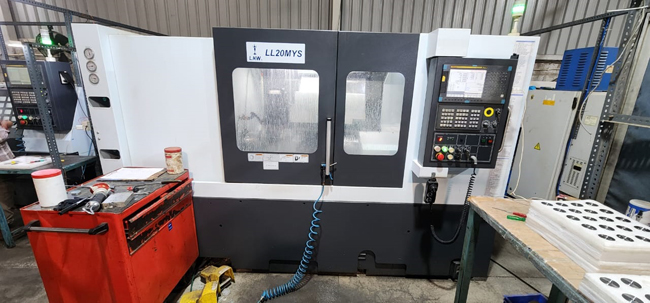

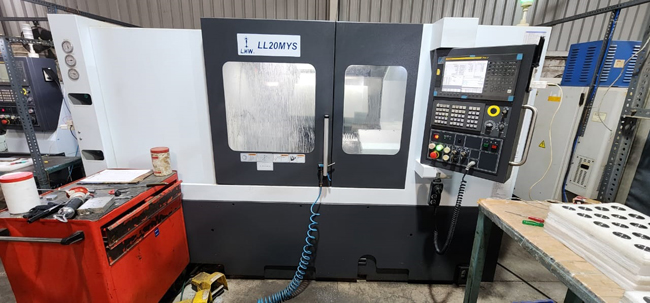

LMW LL20MYS L5

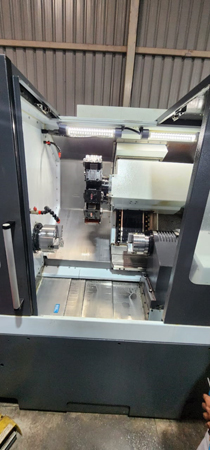

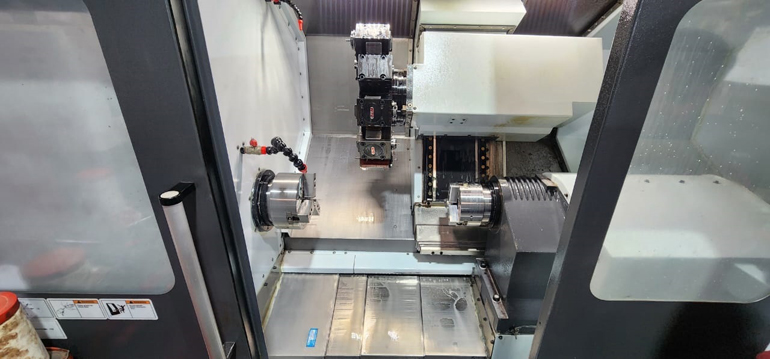

Double Spindle, 12 Live Tool Turret, Travel X-Axis, Travel Y-Axis, Travel Z-Axis, Travel W-Axis.
Capicity
| Swing over carriage | mm 560 |
| Max. Turning Diameter | mm 290 |
| Max.Turning Length | mm 470 |
| Admit Between Centres | mm 613 |
Spindle
| Spindle nose | type A2-6 |
| Chuck dia. | mm 210 |
| Hole through Spindle | mm 61 |
Sub Spindle
| Spindle nose | type A2-5 |
| Chuck dia | mm 165 |
| Hole through spindle | mm 53 |
Live Tool Turret
| No. of stations | Nos 12 |
| Tool shank size | mm 25 x 25 |
| Max. Boring bar dia. | mm 40 |
Feed
| Inclination of Carriage | mm 600 to Horizontal Plane |
| Travel X - Axis | mm 173 |
| Travel Y - Axis | mm ±50 |
| Travel Z - Axis | mm 576 |
| Travel W - Axis | mm 525 |
| Rapid traverse (X/Y/Z/W) | Axes m/min 30 / 15 / 30 / 15 |
-
Live Tools Attached
-
WTO Make
-
Right Angle Drill Milling Tools - 6
-
E16 Adjustable Angle Drill/Milling Unit - 2
-
Combination Tool Holder - 5
-
MT Make Live Tool Holder
-
Axial Opposite Face Twin Driven Tool Holder - 4
